Softphones

Set up a softphone on your device to make and receive VoIP calls

Once you've got a VoIP User set up in myTTNC, you can register this with a softphone, allowing you to make a call over the internet using your computer or mobile device. Here are the setup guides for some of the most popular softphone applications.

TTNC Softphone

We have created a softphone app which we feel is the best solution for a VoIP user on a mobile phone. The app features everything we believe a TTNC customer needs to utilise their VoIP Users to the fullest.

  • Easy set up - QR code scanning for provisioning within myTTNC
  • Call Recording and player (on device) - record single calls or conference calls
  • Supports making VoIP calls over 3G and WiFi
  • Automatic creation of quick dial contacts (Extensions) for all other VoIP users on the realm
  • Custom Ringtones (16 different)
  • Contacts integration, add or edit contacts from within the app
  • Push Notifications for incoming calls to save battery life
  • Do Not Disturb - DND on device
  • HD Audio quality
  • Echo cancellation
  • Speakerphone, Mute and Hold
  • Call Transfer (Attended or Unattended)
  • Busy Lamp Field (BLF) for extensions – show who is on a call in your team
  • Swap between 2 active calls
  • Conference calls with Merge and Split features
  • Dial from Call History and Favourites
  • Quick Dial Extension numbers
  • Hold with Music on Hold
  • Message Waiting Indicator

The app is compatible with iPhone and Android devices.

For a full 'how-to guide' please visit the TTNC Softphone User Guide


Downloading the TTNC Softphone Mobile App

The TTNC Softphone is a free application for Apple and Android devices which can be downloaded from:

iOS


Android



Other TTNC Softphone Apps

Alongside the mobile app, there is a Desktop app and also a web application.

TTNC Softphone Desktop App

MacOS



Windows

For a full 'how-to guide' please visit the TTNC Softphone Desktop Application User Guide

TTNC Softphone Browser App
The Browser Application will run via Chrome on any OS and can be accessed here
For a full 'how-to guide' please visit the TTNC Softphone Browser Application User Guide


Provisioning to the TTNC Softphone With QR Code

Once the app has downloaded to your mobile device, log into your myTTNC account from a computer to register a user to TTNC Softphone Application.

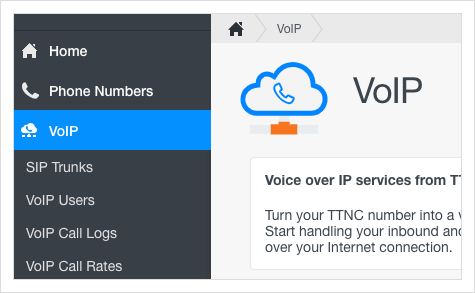

  1. Select VoIP from the left-hand menu.

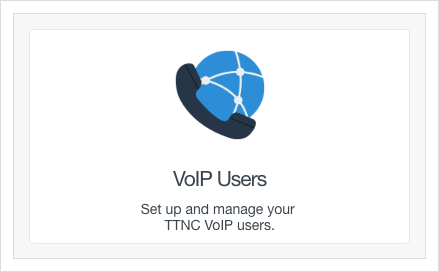

  1. Click on the VoIP User section (or select it from the left-hand menu.)
  1. Press the Manage button, this will show all the VoIP User(s) associated with the TTNC number, if you have more than one TTNC, press the button for the number you wish to use.

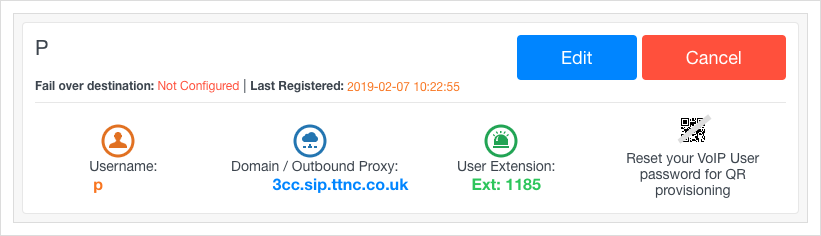

  1. Find the VoIP User you wish to register and click on the View Provisioning Code button.

If the VoIP User password needs to be updated, the View Provisioning Code button will be replaced with a 'reset VoIP User password' message.

Resetting VoIP User password

When the VoIP User password is reset, all registered desk phones and softphones will require re-registering with the new password.

To Change your VoIP User Password

To change the VoIP User password, press the `Edit` button on the VoIP user.




In the Password field, at the bottom of the screen, enter a password, then press 'Update credentials' to save the password then press 'Close'.




Press the `View Provisioning Code` button.

  1. Open the TTNC Softphone app downloaded earlier, on your mobile device. Press the Scan QR button, you may have to allow the app access to your camera, and scan the provisioning QR code.
  1. Once recognised your mobile device will begin to register your VoIP User.
    You will be asked to allow notifications to be sent - this will inform you of an incoming call if you're not running the app. You will also be asked to access your Contacts - You can call any of your phone contacts from the Softphone app.
  1. Once the registration has completed press the Read to view the Terms & Conditions, then I Agree to continue.
  1. The softphone is all set up and ready to use. The first time you make or receive a call the app will ask for permission to use the microphone, ensure that permission is granted.

For a full 'how-to guide' please visit the TTNC Softphone User Guide


Manually Registering to the TTNC Softphone

Once the app has downloaded to your mobile device, log into your myTTNC account from a computer to make a note of the VoIP Username, Domain and Password.

  1. Select VoIP from the left-hand menu.
  1. Click on the VoIP user section (or select it from the left-hand menu.)
  1. Press the Manage button, this will show all VoIP User(s) associated with the TTNC number, if you have more than one TTNC, press the button for the number you wish to use.
  1. Find the VoIP User you wish to register and make a note of the Username and the Domain/Outbound Proxy. If you don't know the VoIP User password, then Edit.
  1. Enter a password in the field at the bottom of the screen and press Update credentials.

  2. On your mobile device open the TTNC Softphone app.

  3. In the Username field enter your VoIP Username@VoIP Domain/Outbound Proxy - the Username should look like this: testvoip@x1x11x11.sip.ttnc.co.uk.

  4. Enter your VoIP Password into the Password field and press 'Sign In'.

  1. Press the Read to view the Terms & Conditions, then I Agree to continue.
    You will be asked to allow notifications to be sent - this will inform you of an incoming call if you're not running the app. You will also be asked to access your Contacts - You can call any of your phone contacts from the Softphone app.
  1. The softphone is all set up and ready to use. The first time you make or receive a call the app will ask for permission to use the microphone, ensure that permission is granted.

For a full 'how-to guide' please visit the TTNC Softphone User Guide


TTNC Desktop Application & Web RTC

The TTNC Desktop Softphone Application is a free application for Mac and Windows which can be downloaded from:

MacOS



Windows

If you're looking for a web-based solution, perfect if you're away from your personal computer, but need to make or receive a call on to your VoIP User our Web Application can be used without downloading anything.

The Web Application runs directly from your web browser. The only thing you need to do is log into the application, which can be found here with your VoIP username, domain and password.


Registering to the Desktop or Browser Softphone

First, you need to log into your myTTNC account.

  1. Select VoIP from the left-hand menu.
  1. Click on the VoIP user section (or select it from the left-hand menu.
  1. Press the Manage button, this will show all VoIP User associated with the TTNC number, if you have more than one TTNC, press the button for the number you wish to use.
  1. Find the VoIP User you wish to register and make a note of the Username and the Domain/Outbound Proxy. If you don't know the VoIP User password, then Edit.
  1. Enter a password in the field at the bottom of the screen and press Update credentials.
  1. Now open either the browser application or the downloaded desktop application.

  2. Log in using your TTNC VoIP User details.
    Username = VoIP Username @ VoIP Domain / Outbound Proxy
    Password = VoIP Password

  1. The softphone is ready to use. Ensure that permission to use the microphone is granted.

Interested in a different application?

macOS
Windows
Linux
iOS
Android


TTNC
Price: free


X-lite
Price: free


Zoiper
Price: free and paid


Linphone
Price: free


Bria
Price: paid


Acrobits
Price: paid
